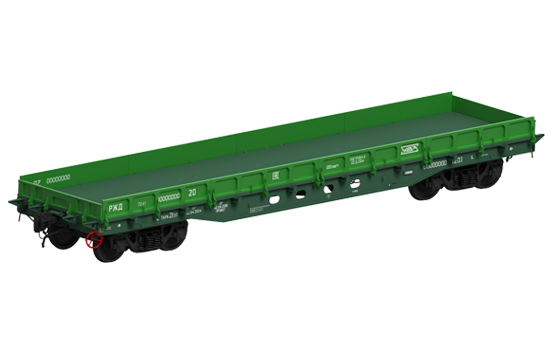

Universal flat car of model 13-192-01 |
 |
|
|
|
|
 |
|
 |
Universal flat |
|
|
To transport long loads, piece goods, timber, metalworks, wheeled and caterpillar vehicles, packaged and bulk cargoes to be not weather protected
|
|
|
|
|
|
Technical characteristics |
|
|
Max. carrying capacity, t |
72 |
|
| Empty weight, t |
21,5 |
|
Max. design static axleload, kN (tf)
|
230,5 (23,5) |
|
Coupled length, mm
|
14620
|
|
Bogie centers, mm
|
9720 |
| Frame width , mm |
2870 |
|
Flat car width over clamps of timber pillars, mm
|
3141 |
| Floor area, m3 |
38,4 |
| Flat car hight to floor lever, mm |
1310 |
| Design speed km/h |
120 |
| Bogie |
18-100 type 2 |
| Coupler |
СА-3 |
|
Clearance per GOST 9238:
- of bogie
- of body
|
02-ВМ
0-ВМ |
 |
|
|
 |
|
